제품 번호 :
Series 9225-B관습 :
AcceptedMOQ :
2000보증 :
2 years포트 :
Shenzhen리드 타임 :
35 days지불 조건 :
T/T, L/C샘플 시간 :
one week인증 :

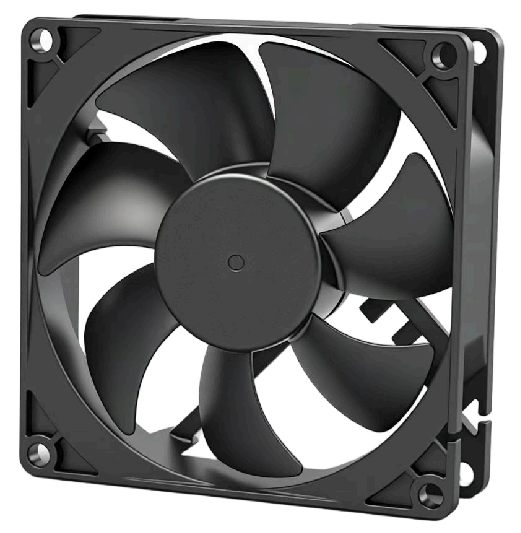

CE, UL, TUV, ROHS, ISO9001, ISO14001Refrigerator BLDC cooling fan motor
Product Details
| Series | Model |
Rated
Voltage
|
Rated Current |
Rated
Speed
|
Air Flow
|
Pressure
|
Sound
Level
|
||
| (V) | (A) |
(RPM)
|
(m³/min)
|
(CFM)
|
(mmH₂O)
|
(InH₂O)
|
dB(A)
|
||
| 9225-B |
KD-09225X12Y
|
12
|
0.07
|
2000 |
0.99
|
35.06
|
2.1
|
0.08
|
23.66
|
|
KD-09225X12Y
|
12
|
0.07
|
2700 |
1.31
|
46.39
|
3.39
|
0.13
|
32.6
|
|

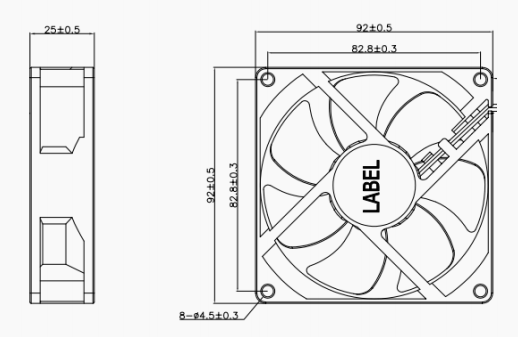

Outline Drawing
Applications
Refrigerator, washing machine, dryer etc.
Application Display

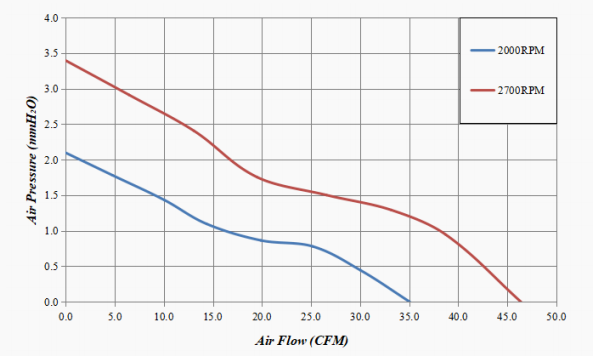

Performance Curve
Company Profile
Shenzhen Keli Intelligent Control Technology Co., Ltd. is a wholly-owned subsidiary of Keli Motor Group. The company has more than 30 years of brushless motor technology precipitation. The core backbones hired are all with many years of experience in the field of brushless motors. In the coming years, we will continue to provide professional brushless motor solutions for well-known customers. At present, the main products are DC brushless motors, drives, encoders, air dut modules, etc. The main application areas are personal care, sports health, smart home, beauty salons, 5G communications, medical equipment, office automation, industrial automation, etc. The products have obtained UL, CE, RoHS, and other certifications, and passed ISO9001 quality system certification, and ISO14001 environmental system certification.
공기청정기의 브러시리스 모터는 고객의 요구에 따라 독자적으로 개발하여 저소음, 고효율 등의 장점을 가지고 있습니다. 국내 및 국제 기준에 부합하는 우수한 성능의 안정적이고 안정적인 모터로 가정에서 널리 사용되고 있습니다. 기구.
